DRAPER ATV Spot Sprayer 98L

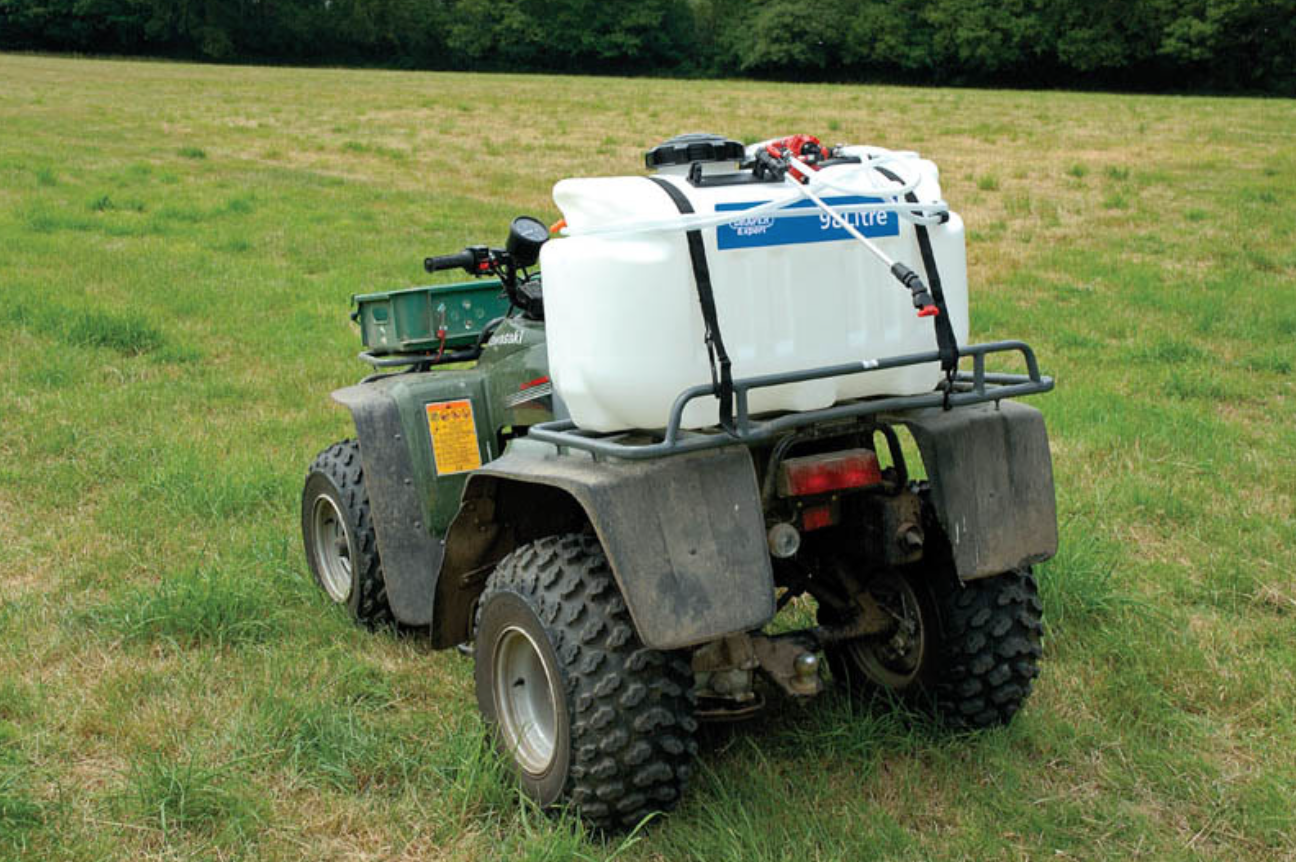

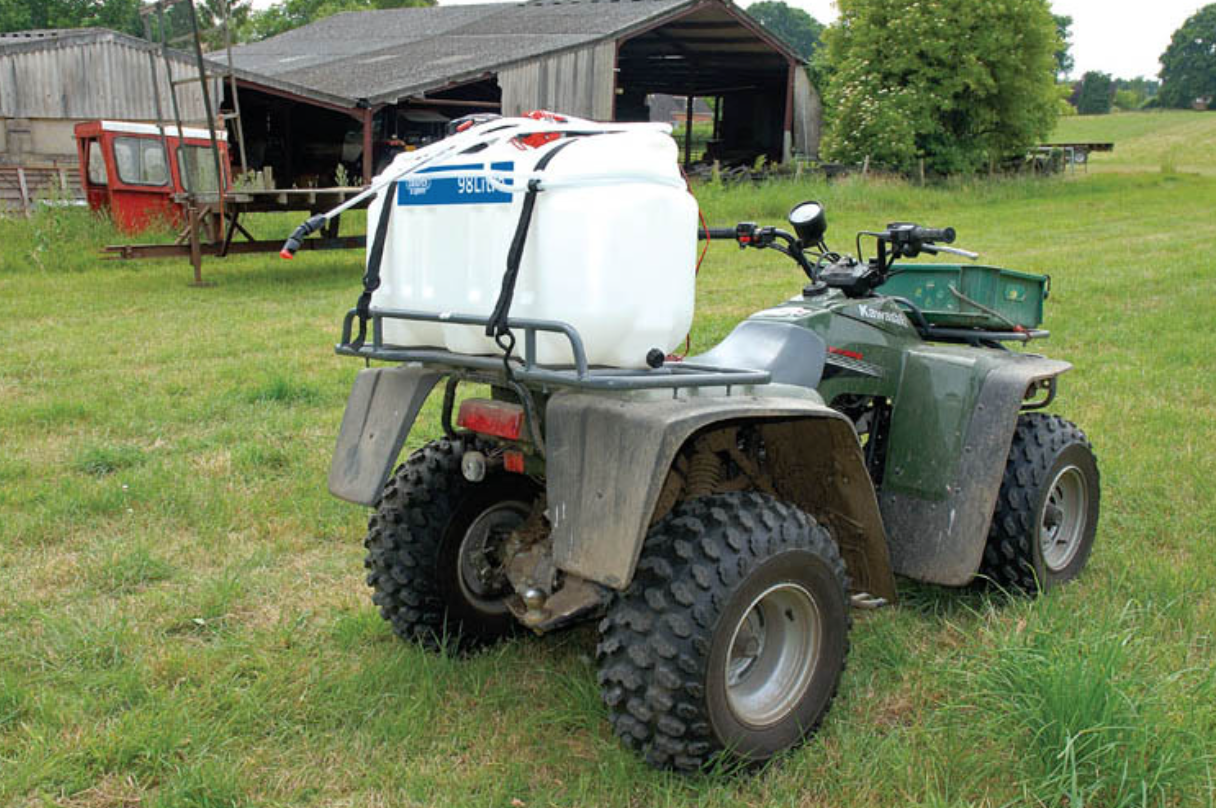

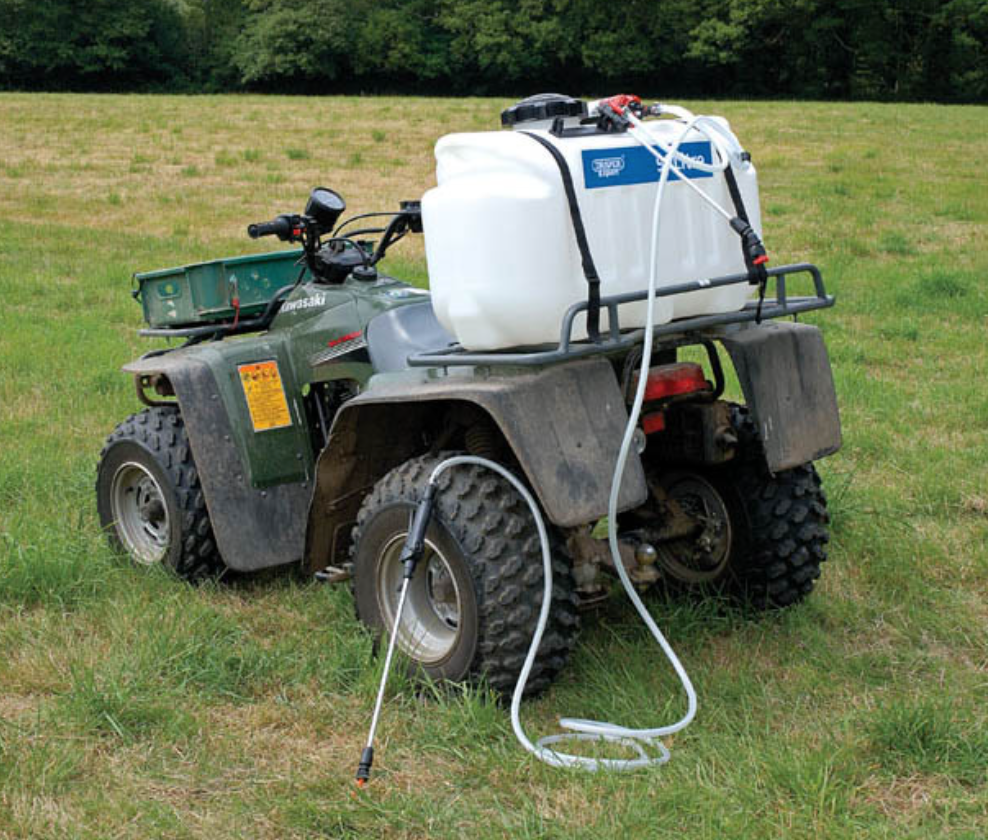

Mounts to any all terrain vehicle (ATV). Supplied with two lances : one attached to tank bracket for broadcast spraying and the second with a trigger for hand operation. Spray pump powered by 12V battery or connected via electric 12V motor on ATV. The pressure activated diaphragm pump produces a smooth flow from the tank. The tank is manufactured from special chemical resistant polymers for extra long life. Can be used for spraying fertilizer, weed killer, de - icer and ethylene glycol products. Supplied with straps for fixing to ATV and switch for remote operation.

Maximum flow rate (b/cast lance) : 8.3L/min

Maximum pressure (b/cast lance) : 70psi (4.86bar)

Maximum flow rate (hand lance) : 3.8L/min

Maximum pressure (hand lance) : 40psi (2.76bar)

Spray pattern (both lances) : Stream/Cone

Hose length (hand lance) : 4.5m

Tank dimensions : 864 x 368 x 419mm

Weight : 9.9 kg (empty)

Capacity/Liters (Ml/L) 98L
