COMEUP CUB 3S 12V STD, 3000LBS, SYNTHETIC ROPE
129300
- Free delivery in Europe from 195€
- In stock, ready to ship
- Inventory on the way

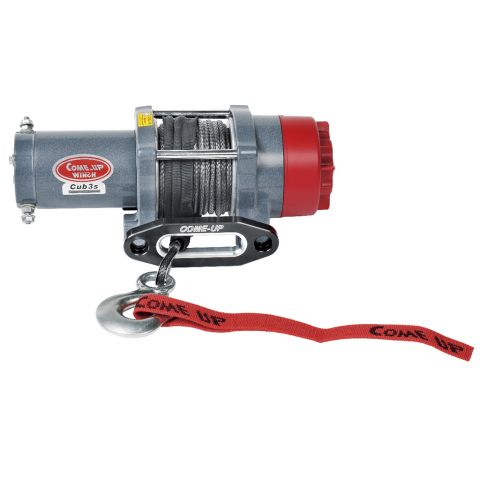

COMEUP ATV Winch Cub 3s
COMEUP ATV Winch Cub 3s, 12V, 3000lbs, synthetic rope.
Features:
- 3,000 lb (1,361 kg) line pull
- Power in and power out
- Winch drum centred avoids the interference of rope and provides streamlined appearance
- Mechanical load holding and dynamic brake for 100% braking
- High efficiency, low amp draw and sealed permanent magnet motor
- Full metal 3 stage planetary gear train for greater pulling force
- Sliding pin and ring gear clutch for rapid synthetic rope payout
- Weather sealed contactor gives better water proof and lower amp. draw
- 15.2 m ( 50 ft) of 4.8 mm ( 3/16") synthetic rope from Dyneema's SK-75 supplied
- E/e marked as of EU Directive 97/24/EC. EEC Type - Approval Number: e4*97/24*97/24/8/IX*0036*0
Specification / part numbers:
- Part Number: PN 129300
- Maximum line pull: 3,000 lb (1,361 kg)
- Motor: Permanent magnet 800w/1.0hp 12V DC motor
- Gear train: 3-stage planetary gears
- Gear ratio: 138.5:1
- Brake: Mechanical & dynamic
- Clutch: Sliding pin and ring gear
- Control: Handlebar rocker switch
- Rope size (mm x m): 4.8 x 15.2 (3/16" x 50'), synthetic SK-75
- Winch construction: Aluminum die cast housings and drum
- Rotation of winch: Rope shall be under-wound orientation only

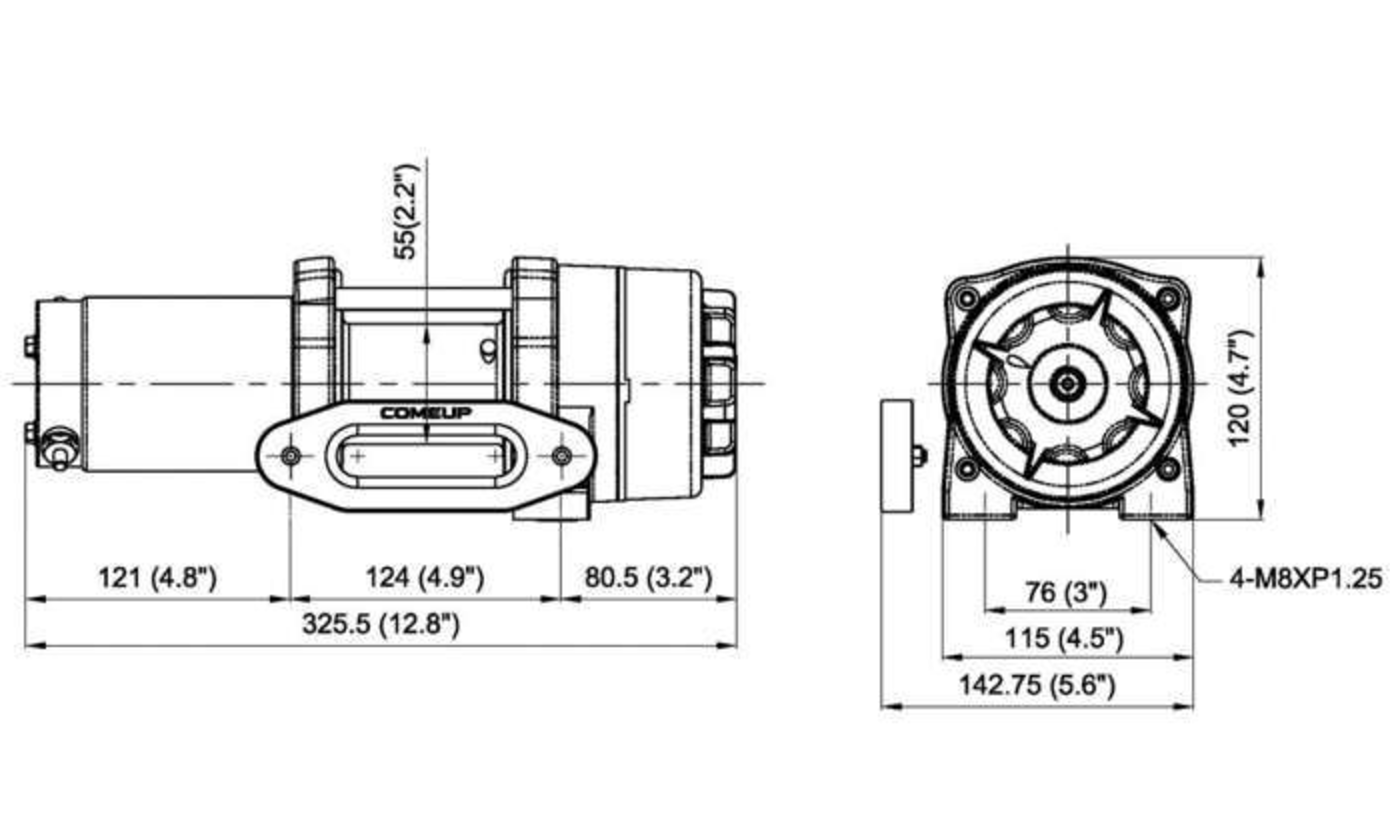

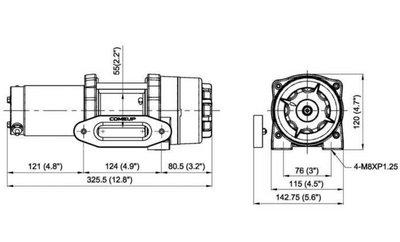

- Drum size (mm x mm): 55 x 75 (2.2" x 3")
- Mounting bolts pattern (mm x mm): 76 x 124 (3"x 4.9"*Limited lifetime warranty
Line pull and rope capacity:
| Layer of Rope | Pull by Layer kg / lb | Total Rope m / ft | ||
| 1st Layer | 1,361 / 3,000 | 2.8 / 9.3 | ||
| 2nd Layer | 1,173 / 2,585 | 6.1 / 20.1 | ||
| 3rd Layer | 1,030 / 2,271 | 9.9 / 32.5 | ||
| 4th Layer | 918 / 2,025 | 14.1 / 46.3 | ||
| 5th Layer | 829 / 1,827 | 15.2 / 50 |
Line speed and amp. draw (1st layer of rope on the drum):
| Line Pull, kg / lb | Line Speed, mpm / fpm | Amp. Draw, A | ||
| No Load | 6.8 / 22.2 | 20 | ||
| 227 / 500 | 5.7 / 18.7 | 45 | ||
| 454 / 1,000 | 4.8 / 15.6 | 75 | ||
| 680 / 1,500 | 3.8 / 12.5 | 105 | ||
| 907 / 2,000 | 3.0 / 9.8 | 140 | ||
| 1,134 / 2,500 | 2.5 / 8.0 | 180 | ||
| 1,361 / 3,000 | 2.0 / 6.7 | 230 |
Warning:
* The winch is not intended to be used in any manner for the movement or lifting of personnel. * The rated line pull shown is based on the first layer of rope on the drum. * The rope winding on the drum shall remain 5 wraps from the drum.

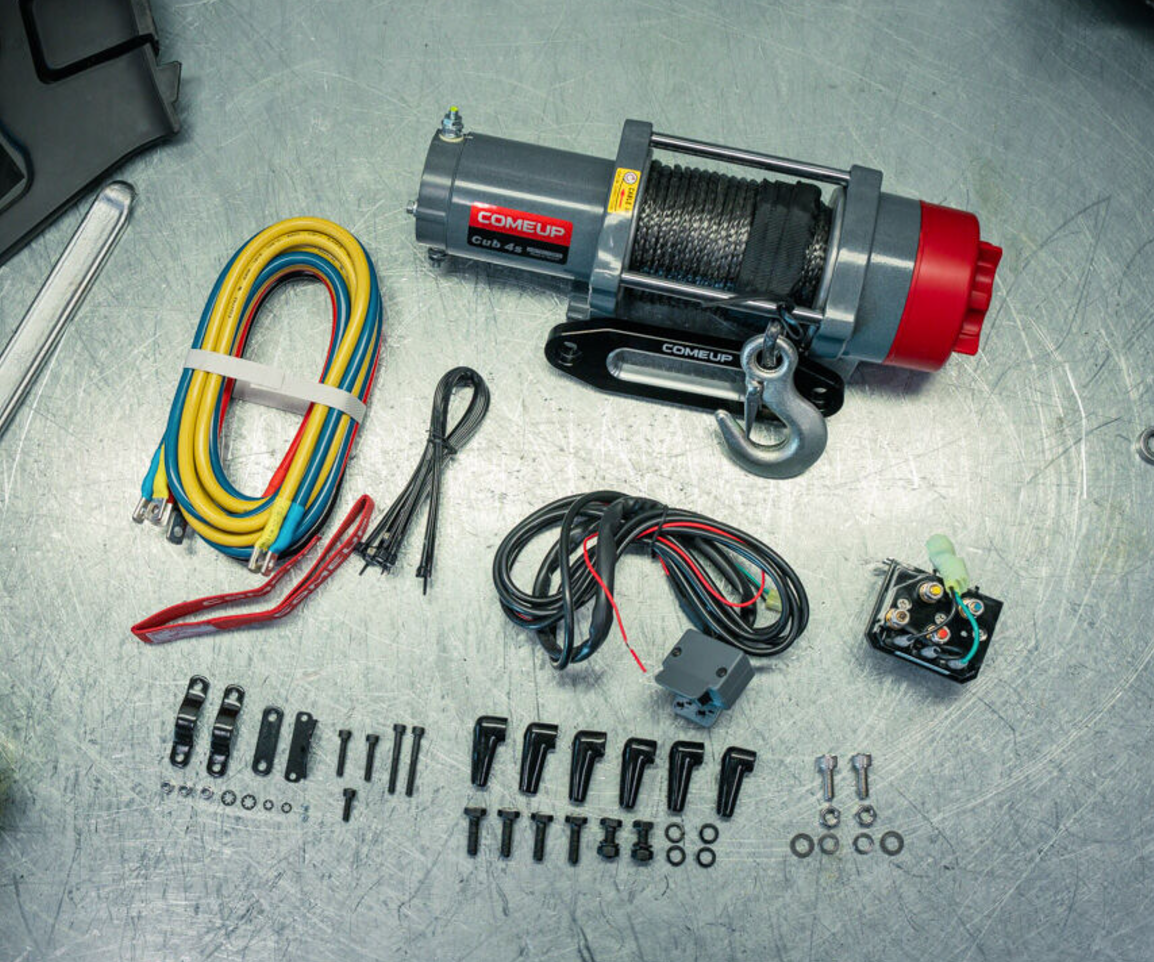

Standard accessories:
- Handlebar rocker switch w/socket wiring, PN 881003
- Hawse fairlead, PN 881072
- Synthetic rope w/safety hook, PN 881063
- Colour coded wirings and 6 gauge battery leads
Optional accessories:
- Wireless remote control, PN 881286
- Handheld remote control w/10' (3m) cord, PN 881289
- Base plate, PN 880232
- Snatch block, PN 881081
- Remote control PN 881305
Package:
- Winch weight: 7.2 kg / 15.9 lb (including rope)
- Gross weight: 11.5 kg / 25.3 lb
- Box dimension (L x D x H): 349 x 331 x 144 mm (13.7" x 13" x 5.7")
